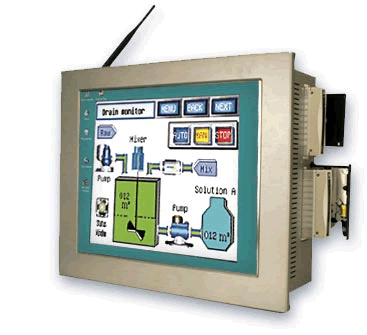

PPC-5250GS-5270-5290GS |
|
|
Features:
-
15"/17"/19" TFT LCD
- LGA 775 Pentium 4/Celeron D 800MHz CPU up to 3.8GHz
- Dual 400MHz DDR DIMM socket support up to 2GB of DR SDRAM
- Dual removable 3.5" HDD modules (optional)
-
Dual Gigabit Ethernet support
-
IP 65 compliant aluminum front panel
-
802.11b or 802.11g wirless LAN module(optional)
|
|
Overview |

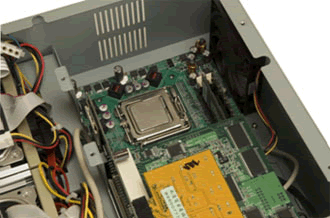

- LGA775 PentiumR 4 Processors with Hyper-Threading Technology Supported
 |
The PPC-52xx series support PentiumR 4 Processors with HT Technology that enables higher data throughput of multi-threaded code and greater overall system performance for today's fast-paced, interactive and other demanding applications. |
| Benefit 1: |
Benefit 2: |
| Larger workloads |
Increased transactions |
 |
 |
Benefit 3: Improved throughput
|
 |
| |
|
- RAID 0 and RAID 1 SATA RAID Supported
| The SiS966 PPC-52xx Southbridge chipset supports RAID 0 and RAID 1 SATA RAID. When using RAID 0 the system stripes data across two disks. Read/write speeds dramatically increase ensuring enhanced performance. RAID 1 mirrors data onto two disks. If one disk fails the system can continue to run because the operational disk continues to operate. RAID 1 ensures no data is lost if one disk fails. |
Performance Enhancement
|
|
| Doubles read/write speeds |
Data Protection
|
|
| 100% protection of data loss / Disk hot-swap support |
 |
 |

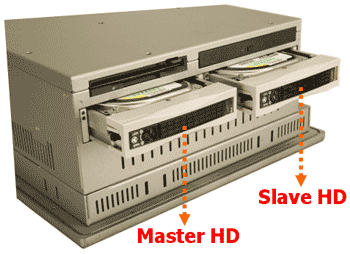

| The dual removable 3.5" HDD modules on the PPC-52xx with hot-swap capabilities ensure simplified data storage backup and replacement, an essential feature in data intensive applications. Removable HDD modules enable easier storage capacity expansion and facilitates data mobility. One HDD is viewed by the PPC as a master drive and the other as a slave drive. |
|
Specification
| |
PPC-5250 |
PPC-5270 |
PPC-5290 |
| CPU Board |
- POS-6614 |
| CPU |
- Socket-775 based 3.8GHz IntelR PentiumR 4/CeleronR 4 processors with 800MHz or 533MHz FSB supported |
| Chipset |
- SiS 661CX + SiS 966 |
| Memory |
- 2 x DDR 400MHz DIMM sockets support up to 2GB of memory |
| VGA |
- SiS661CX supports dual displays |
| SSD |
- CF Type II |
| Drive Bays |
- 2 x 3.5¡¨ SATA / IDE removable HDD bay or 2 x 3.5¡¨ HDD bay with anti-shock
- 1 x Slim Type CD-ROM bay
- 1 x Slim Type FDD bay |
| Ethernet |
- 2 x Realtek RTL8110SC Gigabit Ethernet controller |
| Audio |
- AC ¡¦97 2.3 Realtek ALC 655 |
| I/O |
- 1 x RS-232/422/485 ports |
- 1 x RS-232/422/485 ports |
- 1 x RS-232/422/485 ports |
| - 3 x RS-232 ports |
- 3 x RS-232 ports
|
- 3 x RS-232 ports
|
| - 4 x USB 2.0 ports |
- 6 x USB 2.0 ports |
- 6 x USB 2.0 ports |
- 2 x PS/2 ports (KB/MS)
|
- 2 x PS/2 ports (KB/MS) |
- 2 x PS/2 ports (KB/MS)
|
- 1 x VGA out
|
- 1 x VGA out |
- 1 x VGA out
|
| - 1 x LPT |
- 1 x LPT
|
- 1 x LPT |
| - 2 x LAN |
-2 x LAN
|
- 2 x LAN |
- 3 x Audio (Line-in, Line-out, MIC-in)
|
- 3 x Audio (Line-in, Line-out, MIC-in) |
- 3 x Audio (Line-in, Line-out, MIC-in)
|
| - 2 x IDE |
- 2 x IDE
|
- 2 x IDE
|
| - 2 x SATA |
- 2 x SATA |
- 2 x SATA |

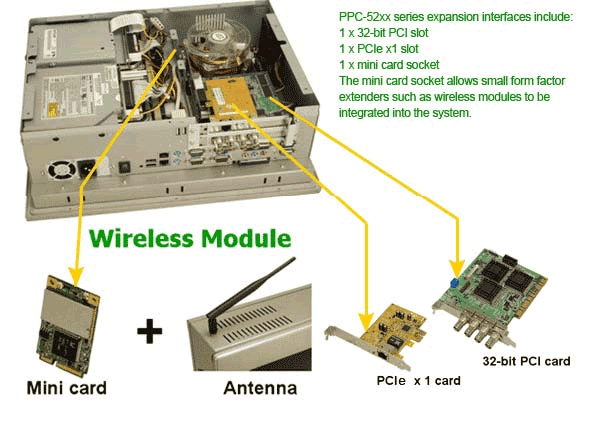

Expansion
Slot |
- 1 x PCI slot,
- 1 x PCI-E by 1
- 1 x mini card |
| Touch Screen |
- Optional 5-wire resistive type with RS-232 interface |

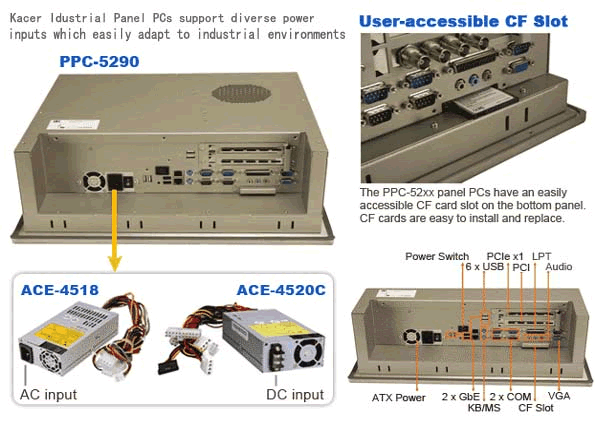

Power
Supply |
- ATX Power - 250W, ACE-4525AP-RS Input: 90 ~ 240VAC @ 50/60Hz,
Output (max) : 3.3V@16A , 5V@16A, 12V1@16A, 12V2@16A, -12V@ 0.5A, 5Vsb@2.5A
ATX Power - 300W, ACE-830CU1 Input: 24VDC @ 50/60Hz, Output (max) :
3.3V@20A , 5V@25A, 12V@22A, -12V@ 1A,+5Vsb@1.5A |
Operating
Temp |
- 0¢XC ~ 50¢XC |
| Storage Temp |
- 20¢XC ~ 60¢XC |
| Vibration |
- 5Hz ~ 17Hz 0.1¡¨ double amplitude displacement - 17Hz ~ 640 Hz 1.5G acceleration peak to peak |
| Shock |
- 10G acceleration peak to peak. (11ms) |
Relative
Humidity |
- 5% ~ 95% @ 60¢X C, non-condensing |
Net /Gross
/Weigh |
- 10.0kg/15.2kg |
- 12.6kg/18.6kg |
- 14.8kg/20.4kg |
| Dimensions(mm) |
- 410 (w) x 309 (H) x 138(D |
- 452(w) x 356(H) x 142 (D) |
- 483 (w) x 305 (H) x 151 (D) |
| LCD |
- Resolution: 1024 x768 XGA |
- Resolution: 1280x1024 SXGA
|
- Resolution: 1280 x1024 XGA
|
| - Brightness : 300cd/m2 |
- Brightness : 300cd/m2
|
- Brightness : 300cd/m2 |
- Contrast Ratio : 400:1
|
- Contrast Ratio : 500:1 |
- Contrast Ratio : 700:1
|
| - Viewing Angle |
- Viewing Angle
|
- Viewing Angle (H-V):140/130
|
| - (H-V):120/100 |
- (H-V):140/130 |
- Backlight MTBF : 50000hrs |
| - Backlight MTBF : 50000hrs |
- Backlight MTBF : 50000hrs |
|
| Front Panel Protection |
- IP 65 Compliant |
|
Ordering Information:
PPC-5250GS Ordering Informa:
Part No. |
Description |
| PPC-5250GS/6614/ACE-4525AP |
- 15" PentiumR 4 full function TFT LCD panel PC with POS-6614 and ACE-4525AP-RS, Silver color, RoHS |
| PPC-5250GS/6614/ACE-4525AP/T-R |
- 15" PentiumR 4 full function TFT LCD panel PC with POS-6614, ACE-4525AP-RS and touch screen, Silver color, RoHS |
| PPC-5250GS/6614/ACE-830CU1 |
- 15" PentiumR 4 full function TFT LCD panel PC, with POS-6614 and ACE-830CU1-RS, Silver color, RoHS |
| PPC-5250GS/6614/ACE-830CU1/T-R |
- 15" PentiumR 4 full function TFT LCD panel PC, with POS-6614, ACE-830CU1-RS and touch screen, Silver color, RoHS |
| PPC-5250GS/6614W/ACE-4525AP/T-R |
- 15" PentiumR 4 full function TFT LCD panel PC, with POS-6614, 802.11b/802.11g Wireless module, ACE-4525AP-RS and touch screen, Silver color, RoHS |
PPC-5270GS ¡¨ Order Information:
| Part No. |
Description |
| PPC-5270GS/6614/ACE-4525AP |
- 17" PentiumR 4 full function TFT LCD panel PC with POS-6614 and ACE-4525AP-RS, Silver color, RoHS |
| PPC-5270GS/6614/ACE-4525AP/T-R |
- 17" PentiumR 4 full function TFT LCD panel PC with POS-6614, ACE-4525AP-RS and touch screen, Silver color, RoHS |
| PPC-5270GS/6614/ACE-830CU1 |
- 17" PentiumR 4 full function TFT LCD panel PC, with POS-6614 and ACE-830CU1-RS, Silver color, RoHS |
| PPC-5270GS/6614/ACE-830CU1/T-R |
- 17" PentiumR 4 full function TFT LCD panel PC, with POS-6614, ACE-830CU1-RS and touch screen, Silver color, RoHS |
| PPC-5270GS/6614W/ACE-4525AP/T-R |
- 17" PentiumR 4 full function TFT LCD panel PC, with POS-6614, 802.11b/802.11g Wireless module, ACE-4525AP-RS and touch screen, Silver color, RoHS |
PPC-5290GS ¡¨ Order Information:
| Part No. |
Description |
| PPC-5290GS/6614/ACE-4525AP |
- 19" PentiumR 4 full function TFT LCD panel PC with /POS-6614 and ACE-4525AP-RS, Silver color, RoHS |
| PPC-5290GS/6614/ACE-4525AP/T-R |
- 19" PentiumR 4 full function TFT LCD panel PC with POS-6614, ACE-4525AP-RS, and touch screen, Silver color, RoHS |
| PPC-5290GS/6614/ACE-830CU1 |
- 19" PentiumR 4 full function TFT LCD panel PC with /POS-6614 and ACE-830CU1-RS, Silver color, RoHS |
| PPC-5290GS/6614/ACE-830CU1/T-R |
- 19" PentiumR 4 full function TFT LCD panel PC with POS-6614, ACE-830CU1-RS and touch screen, Silver color, RoHS |
| PPC-5290GS/6614W/ACE-4525AP/T-R |
- 19" PentiumR 4 full function TFT LCD panel PC with POS-6614, 802.11b/802.11g Wireless module, ACE-4525AP-RS and touch screen, Silver color, RoHS |
|
|
|
|
|
